[SpringBatch 실습] 12. preventRestart() 지정에 따른 수행 과정 파악하기

preventRestart()

1) 선언하지 않는 경우 - true

@Bean
public Job preventRestartJob() {
    return this.jobBuilderFactory.get("preventRestartJob")
            /* step start */
            .start(preventRestartStep1())
            .next(preventRestartStep2())
            .build();
}



2) 선언하는 경우 - false

@Bean
public Job preventRestartJob() {
    return this.jobBuilderFactory.get("preventRestartJob")
            /* step start */
            .start(preventRestartStep1())
            .next(preventRestartStep2())
            .preventRestart() // false
            .build();
}



3) false로 지정하는 경우 - false

@Bean
public Job preventRestartJob() {
    return this.jobBuilderFactory.get("preventRestartJob")
            /* step start */
            .start(preventRestartStep1())
            .next(preventRestartStep2())
            .preventRestart(false) // false
            .build();
}





Job 생성

PreventRestartJobConfiguration.java

package com.project.springbatch._19_preventRestart;

import lombok.RequiredArgsConstructor;
import org.springframework.batch.core.Job;
import org.springframework.batch.core.Step;
import org.springframework.batch.core.StepContribution;
import org.springframework.batch.core.configuration.annotation.JobBuilderFactory;
import org.springframework.batch.core.configuration.annotation.StepBuilderFactory;
import org.springframework.batch.core.scope.context.ChunkContext;
import org.springframework.batch.core.step.tasklet.Tasklet;
import org.springframework.batch.repeat.RepeatStatus;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

/*

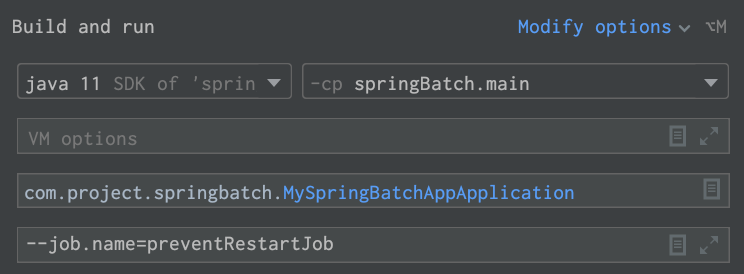

--job.name=preventRestartJob
 */

@Configuration
@RequiredArgsConstructor
public class PreventRestartJobConfiguration {

    // job 생성
    private final JobBuilderFactory jobBuilderFactory;
    private final StepBuilderFactory stepBuilderFactory;

    @Bean
    public Job preventRestartJob() {
        return this.jobBuilderFactory.get("preventRestartJob")
                /* step start */
                .start(preventRestartStep1())
                .next(preventRestartStep2())
                .build();
    }

    @Bean
    public Step preventRestartStep1() {
        return stepBuilderFactory.get("preventRestartStep1")
                .tasklet(new Tasklet() {
                    @Override
                    public RepeatStatus execute(StepContribution contribution, ChunkContext chunkContext) throws Exception {
                        System.out.println("preventRestartStep1");
                        return RepeatStatus.FINISHED;
                    }
                })
                .build();
    }

    @Bean
    public Step preventRestartStep2() {
        return stepBuilderFactory.get("preventRestartStep2")
                .tasklet(new Tasklet() {
                    @Override
                    public RepeatStatus execute(StepContribution contribution, ChunkContext chunkContext) throws Exception {
                        System.out.println("preventRestartStep2");

                        throw new RuntimeException("step2 fail");

                        //return RepeatStatus.FINISHED;
                    }
                })
                .build();
    }
}

1) preventRestart() 선언하지 않는다.

@Bean
public Job preventRestartJob() {
    return this.jobBuilderFactory.get("preventRestartJob")
            /* step start */
            .start(preventRestartStep1())
            .next(preventRestartStep2())
            .build();
}

선언하지 않았을 경우, default로 true 값을 가진다.



2) Step2를 고의로 에러를 발생시키자.

@Bean
public Step preventRestartStep2() {
    return stepBuilderFactory.get("preventRestartStep2")
            .tasklet(new Tasklet() {
                @Override
                public RepeatStatus execute(StepContribution contribution, ChunkContext chunkContext) throws Exception {
                    System.out.println("preventRestartStep2");

                    throw new RuntimeException("step2 fail");

                    //return RepeatStatus.FINISHED;
                }
            })
            .build();
}







실행







preventRestart() = true인 경우

첫번째 실행 결과

java.lang.RuntimeException: step2 fail







DB 테이블 조회

1) BATCH_JOB_EXECUTION

COLUMN	VALUE
STATUS	FAILED
EXIT_CODE	FAILED
JOB_EXECUTION_ID	4



2) BATCH_JOB_INSTANCE

COLUMN	VALUE
JOB_NAME	preventRestartJob



3) BATCH_STEP_EXECUTION

• preventRestartStep1

COLUMN	VALUE
STEP_NAME	preventRestartStep1
EXIT_CODE	COMPLETED
STATUS	COMPLETED
JOB_EXECUTION_ID	4



• preventRestartStep2

COLUMN	VALUE
STEP_NAME	preventRestartStep1
EXIT_CODE	FAILED
STATUS	FAILED
JOB_EXECUTION_ID	4





두번째 실행

위 preventRestartStep1, preventRestartStep2 스텝 중에서 preventRestartStep2가 실패했었기 때문에 preventRestartStep1은 실행되지 않고 preventRestartStep2만 실행된다.

preventRestartStep2

java.lang.RuntimeException: step2 fail





preventRestart() = false인 경우

@Bean
public Job preventRestartJob() {
    return this.jobBuilderFactory.get("preventRestartJob")
            /* step start */
            .start(preventRestartStep1())
            .next(preventRestartStep2())
            .preventRestart() // false
            .build();
}



동일한 파라미터로, 동일한 Job 실행시 아래와 같은 JobRestartException 에러가 발생한다.

org.springframework.batch.core.repository.JobRestartException: JobInstance already exists and is not restartable



지금 위 코드로는, preventRestart() 를 정확하게 테스트할 수 없다. 다음의 코드를 추가하자.

.incrementer(new RunIdIncrementer())

incrementer() 포스팅 바로가기

https://devfunny.tistory.com/790

[SpringBatch 실습] 13. incrementer 설정하기, JobParametersIncrementer 를 구현하여 커스텀 설정하기



이렇게 추가하면 계속해서 증가되는 식별자가 파라미터에 추가되어 재실행하여도 같은 JOB으로 인식하지 않는다.

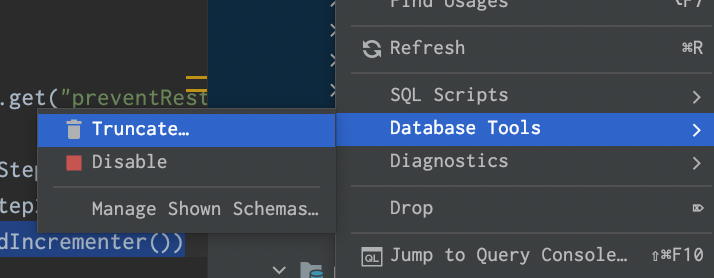

1) 기존 데이터 삭제

기존에 수행했던 DB 데이터를 삭제 후 다시 수행해보자.



2) 코드 추가

@Bean
public Job preventRestartJob() {
    return this.jobBuilderFactory.get("preventRestartJob")
            /* step start */
            .start(preventRestartStep1())
            .next(preventRestartStep2())
            .incrementer(new RunIdIncrementer())
            .preventRestart() // default : true, preventRestart() : false, preventRestart(false) : false
            .build();
}







incrementer() 추가 후 첫번째 수행

첫번째 실행 결과

java.lang.RuntimeException: step2 fail





DB 테이블 조회

1) BATCH_JOB_EXECUTION

COLUMN	VALUE
STATUS	FAILED
EXIT_CODE	FAILED
JOB_EXECUTION_ID	4



2) BATCH_JOB_INSTANCE

COLUMN	VALUE
JOB_NAME	preventRestartJob



3) BATCH_STEP_EXECUTION

• preventRestartStep1

COLUMN	VALUE
STEP_NAME	preventRestartStep1
EXIT_CODE	COMPLETED
STATUS	COMPLETED
JOB_EXECUTION_ID	4



• preventRestartStep2

COLUMN	VALUE
STEP_NAME	preventRestartStep1
EXIT_CODE	FAILED
STATUS	FAILED
JOB_EXECUTION_ID	4





재수행

이때가 중요하다. 결과 로그를 보자.

preventRestartStep1
preventRestartStep2

java.lang.RuntimeException: step2 fail



preventRestartStep1 이 다시 수행되었다. 분명 위에서 첫번째 수행시, preventRestartStep1 는 COMPLETED 상태로 완료되었는데 preventRestart()가 false 였기 때문에 preventRestartStep1 부터 모든 스텝이 재수행된 것이다.



precentRestart() 값	수행
true (default)	실패한 STEP부터 재수행된다.
false	모든 STEP이 재수행된다.
